Remote Terminal

reference

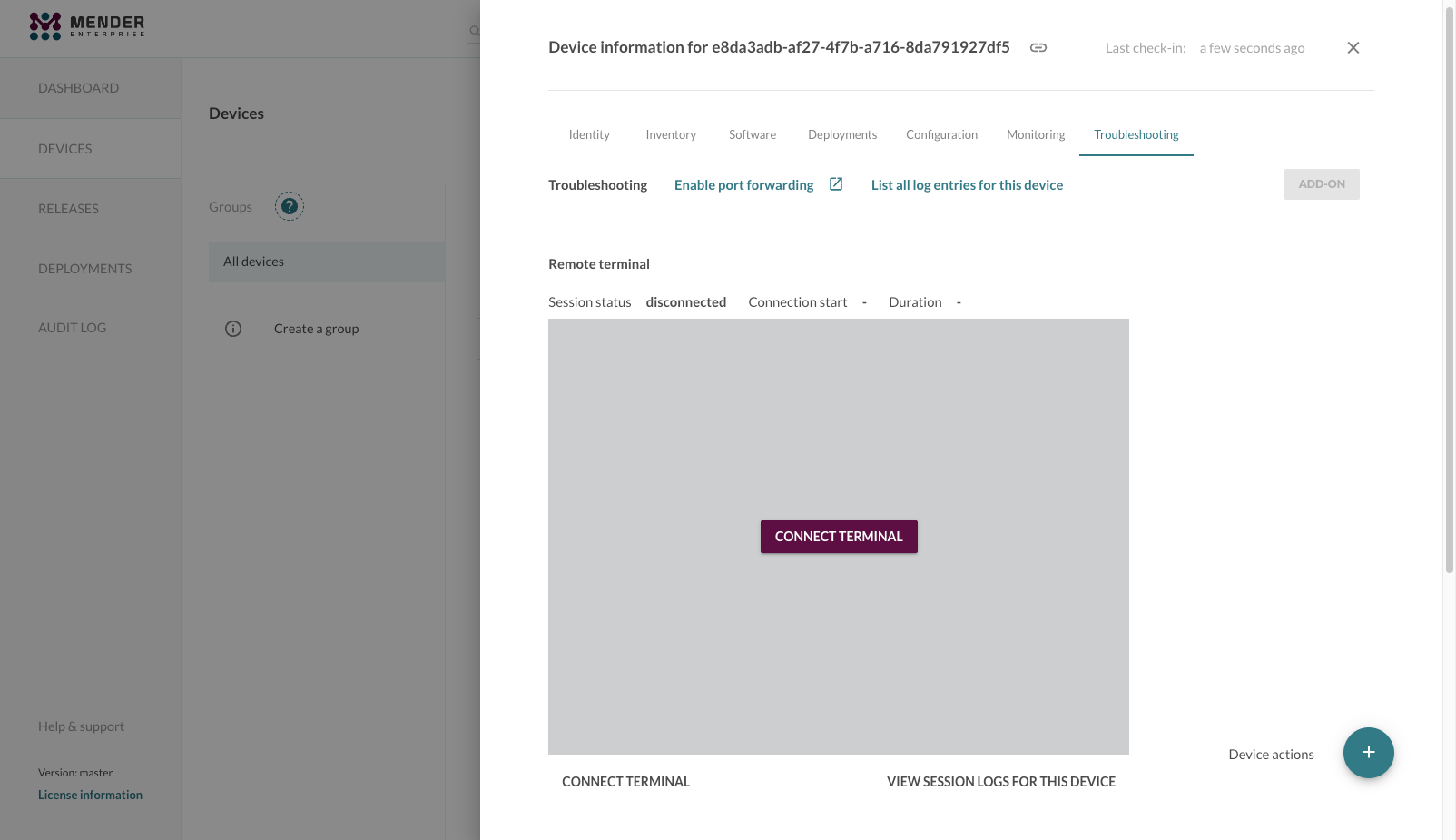

Remote Terminal is a Mender add-on allowing remote command execution via interactive, live, fully functional terminal from the Mender UI. You can start a terminal session to any connected device by navigating to Troubleshooting in the device information, and clicking "Connect terminal" in the UI (see the picture below).

Troubleshooting Remote terminal

All you need is mender-connect configured and running alongside mender-auth, and you can get a live terminal where you can freely type commands.

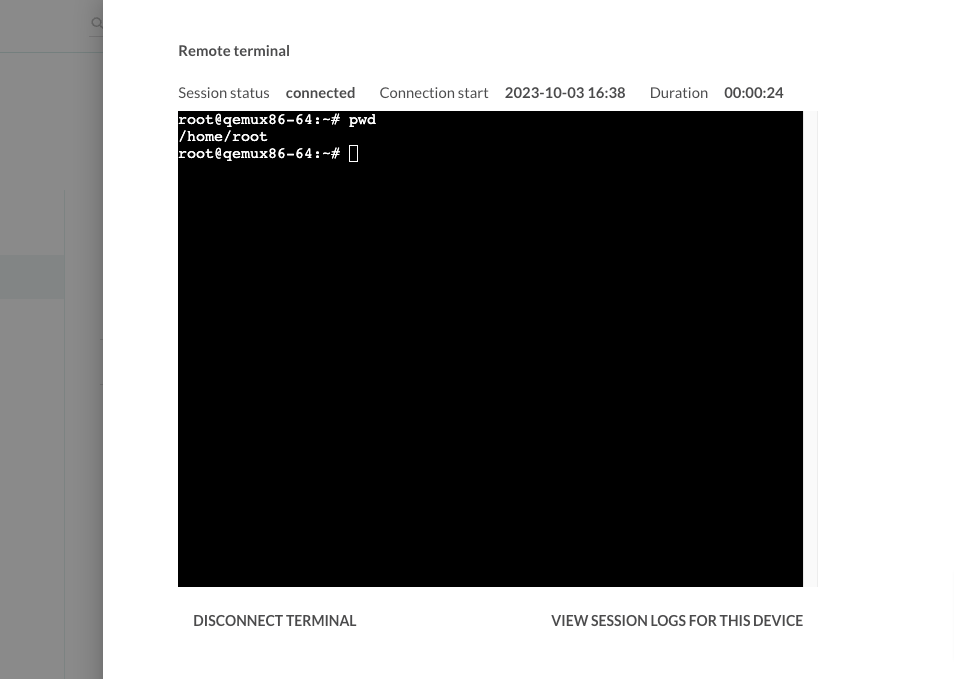

connected-termainl

Every keystroke in the above popup window will go to the standard input of a shell running on the device.

No relation to SSH

Remote Terminal by Mender passes messages of a defined protocol over a websocket connection. The two main actors: the mender-connect and Mender UI communicate using a well-defined open protocol over a websocket connection. They exchange messages which carry user keystrokes, terminal output, and control data. Therefore, there is no relation to SSH and no part of it is either used or required. You are, however, able to run sshd or ssh command, since you have a fully functional terminal at your disposal. Mender does not impose any additional restrictions on the commands, shell, or terminal. The picture below shows a simplified architecture with a websocket, mender-connect, and a shell running in a child process of mender-connect with allocated pseudo tty.

mender-connect-and-ws

Loose coupling to Mender

There is a loose coupling between Mender and the add-ons like mender-connect. Remote Terminal expects a certain well-defined DBus API to be in place on a device, and a working websocket connection endpoint; none of these have to come from or go to Mender. As long as you send compatible messages over the websocket, mender-connect will work. With Mender, however, you have everything in place, and all you need is to perform a simple configuration of the client and start mender-connect. Additionally, you can take advantage of the Role Based Access Control and Audit Logs, since we fully integrated mender-connect add-on into Mender.

Support for multiple users

The mender-connect supports simultaneous shells from different Mender users. On the device, you run the shell as a system user which you can set in the configuration.

An arbitrary number of users each running an arbitrary number of sessions can easily lead to resources exhaustion on a device. To this end, mender-connect imposes two configurable restrictions on:

  • the total number of shells
  • the number of sessions per user.

On the other hand, you can imagine a scenario when you reach both limits and lock yourself out from the remote terminal. In order to protect against this scenario, mender-connect supports automatic termination of idle and/or expired sessions.

Sessions and terminals

A remote terminal session consists of a spawned shell (as a subprocess of the mender-connect process) a unique string called a session id, and a system username. The main responsibility of the mender-connect executable is to read messages from the websocket, route them by session id to the correct shell, read the output going to the terminal, and pass it upstream over the websocket.

For Mender Enterprise customers, Mender provides audit logging of all terminal sessions. The audit logs include terminal creation/termination events as well as the terminal output which users can later inspect from the AUDIT LOG panel in the Mender UI.

Audit logs is only available in the Mender Enterprise plan. See the Mender features page for an overview of all Mender plans and features.

Using your own terminal

It is possible to use the remote terminal feature from you own terminal instead of the UI. To achieve this please download the mender-cli tool.

You will need the Device ID and the access token, both accessible from the UI. Device ID is available under the UI under DEVICES -> select device -> Identity -> ID.

For the access token you can use whatever way works best for you, a PAT or a session token (Settings -> My profile -> Session token) are the quickest.

DEVICE_ID=<Fill with yours>
SESSION_TOKEN=<Fill with yours>

./mender-cli --server https://eu.hosted.mender.io --token-value $SESSION_TOKEN terminal $DEVICE_ID

As an alternative you can login with your user credentials and not need to specify the token.

DEVICE_ID=<Fill with yours>
./mender-cli --server https://eu.hosted.mender.io login
./mender-cli --server https://eu.hosted.mender.io terminal $DEVICE_ID

Further reading

We welcome contributions to improve this documentation. To submit a change, use the Edit link at the top of the page or email us at .
